Yetişkin bez yapma makinesi
>

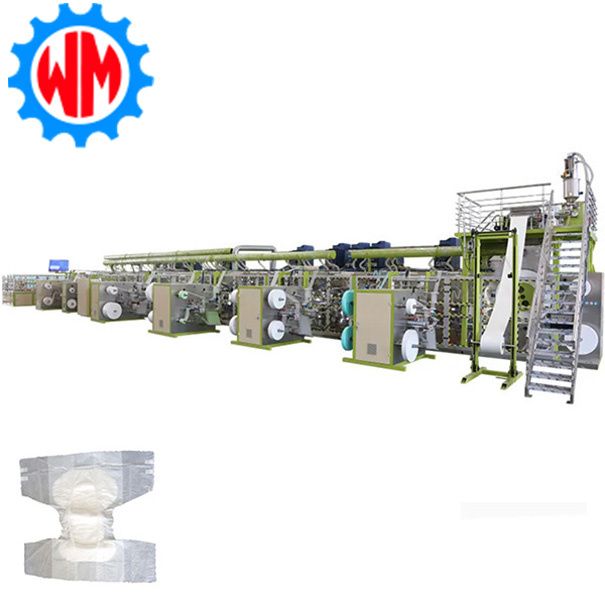

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE

Marka Adı: Womeng
Model Numarası: WM-FJA04
Moq: 1 parça
fiyat: $500,000.00-$800,000.00
Paketleme Ayrıntıları: denize uygun ahşap kutu
Ödeme Şartları: L/C,D/A,D/P,T/T
Ayrıntılı Bilgiler
Menşe yeri:
Fujian, Çin
Sertifika:
CE
Hava kompresörü:
0.6-0.8Mpa
Atık oranı:
≤2%
Fonksiyonlar:
Otomatik besleme, kesme ve istifleme
Görev:
Otomatik üretim, yüksek verimlilik, düşük gürültü
Ürün ağırlığı toleransı:
±5%
İstifleme Sistemi:
Otomatik istifleme sistemi
İşletim arayüzü:
dokunmatik ekran
Makine Rengi:
özelleştirilmiş göre
Tasarım:
Tam Servo Kontrol Sistemi
Güç kaynağı:
380V, 50Hz
Yetenek temini:
12 set/yıl
Ürün Açıklaması

Product Info

Product size
M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 0

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 1

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 2

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 3

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 4

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 6

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 7


Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 8

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 9

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 10

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 11

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 12

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 13

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 14

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 15

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 16

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 17

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 18

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 19

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 20

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 21

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 22

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 23

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 24

Quickly Export 2025 New 400pcs/min Adult Diaper Production Line with CE 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com



Flexible capacity adaptability


Adjustable production speed: Supports flexible adjustment of production capacity based on order volume (such as 800-1,500 pieces per hour), which not only meets the demand for small-batch trial production (suitable for new brands to expand the market), but also can cope with large orders during peak seasons by increasing speed, avoiding waste or insufficiency of equipment production capacity.


Modular combination design: The production line can be disassembled or combined according to customer requirements (such as adding separate anti-leakage edge processing modules and packaging modules). If the product line is to be expanded later (such as upgrading from the basic model to the thickened model), only the corresponding modules need to be installed, without the need to replace the entire equipment, reducing the cost of secondary investment.


Strict control over hygiene standards


Fully enclosed production environment: Key processing links (such as cotton core filling and surface lamination) adopt a closed design to reduce the contact of dust and impurities in the workshop and lower the risk of contamination of finished products. This is especially suitable for markets with high hygiene requirements (such as Japan, Northern Europe, etc.).


Easy-to-clean structure: The contact surfaces of the equipment are made of food-grade stainless steel, and the corners and crevices are designed with arc transitions, eliminating hygiene dead corners. Daily cleaning only requires simple wiping or rinsing, meeting GMP and other clean production standards.


Reduce reliance on manual labor


Automated auxiliary functions: Equipped with automatic feeding, waste recycling and other auxiliary systems, it reduces the workload of manual raw material handling and waste material cleaning. Only 2-3 workers are needed for the entire production line to complete the monitoring, making it suitable for regions with high labor costs (such as Europe and America).


Automatic fault warning: The equipment is equipped with built-in sensors that can monitor key parameters such as temperature and pressure in real time. When an abnormality occurs, it will automatically sound and light alarm and display the fault point (such as "blade wear" or "insufficient raw materials"), reducing the time for manual troubleshooting.
